Name: 2,500 HP, 427ci Street-Strip LS Engine - Complete, Twin 83mm Bullseye NLX Turbochargers
SKU: 368480

This is a Drag & Drive type, full custom engine that can be built in a variety of configurations. It is still street capable, meaning it can operate on pump gas and it retains traditional head gaskets. Its 3,000 hp rated, flex-fuel sister engine uses copper head gaskets with O-rings which can handle higher levels of boost. Copper head gaskets however require frequent adjustments making them probematic for cars that see a lot of driving. The major mechanical components of the two engines however are otherwise the same.

We modified the engine in the video below from street/strip to track-only in its second season (copper head gaskets, O-rings). It is this that is shown on the hub dyno. Our engine dyno is rated to 2,500 hp so we weren't able to run this engine up to the boost level it was designed to handle. The customer was able to get his Camaro onto ProSpeed's hub dyno and aired it out. Running 44 psi boost, he hit 2,737hp at the wheels as reported by Muscle Cars & Truck.

As can be seen in the table below, even the numbers on our dyno break-in at low boost were pretty amazing.

Fuel	Boost	Peak HP	Peak Torque
Pump Gas	15 psi	1,432	1,003
Methanol	22 psi	1,929	1,325

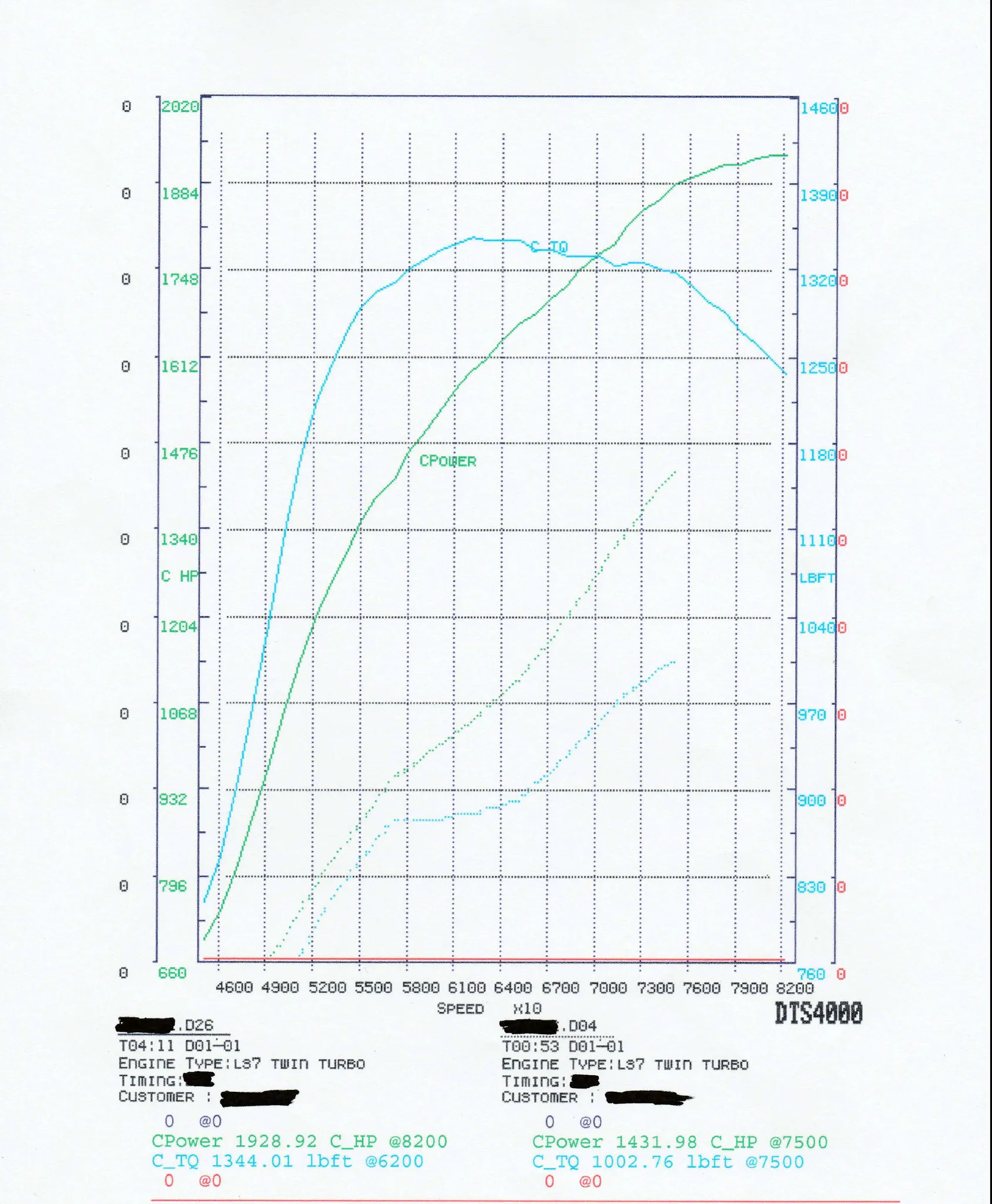

(see attached comparative dyno sheet)

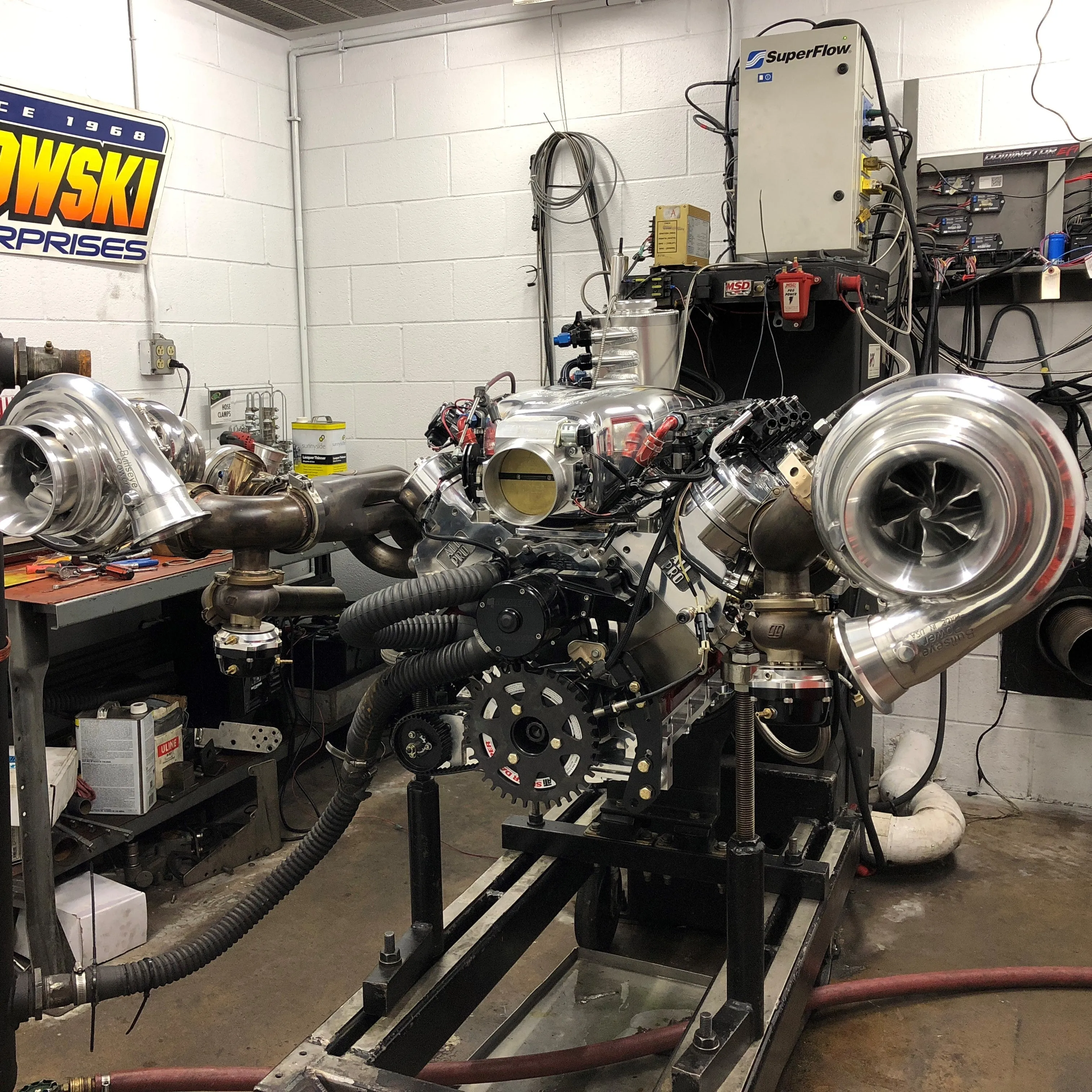

We ran without water to our dyno's intercooler in order to mimic what will happen in the vehicle, which has no intercooler. Thanks to the super-efficient Bullseye NLX turbos, intake air temps never went above 110 F and the back pressure was minimal (< 2 psi). EGTs were so low that the headers didn't even light up (see video below). We also love their full ball-bearing design and patented adjustable MAP groove.

This next video shows a similar build with optional twin 88mm Bullseye turbos and Cometic MLX head gaskets.

The performance story speaks from the data and videos. What about "built to last"? That requires a combination of top-notch parts, engine design, machining, assembly and final dyno tuning. Rather than write a book or brag about how good we are, here are some of the other parts/design highlights:

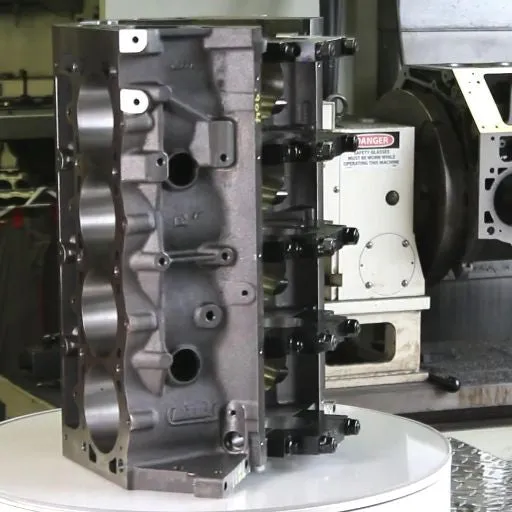

Dart LS Next SHP Pro block with 1/2" head studs

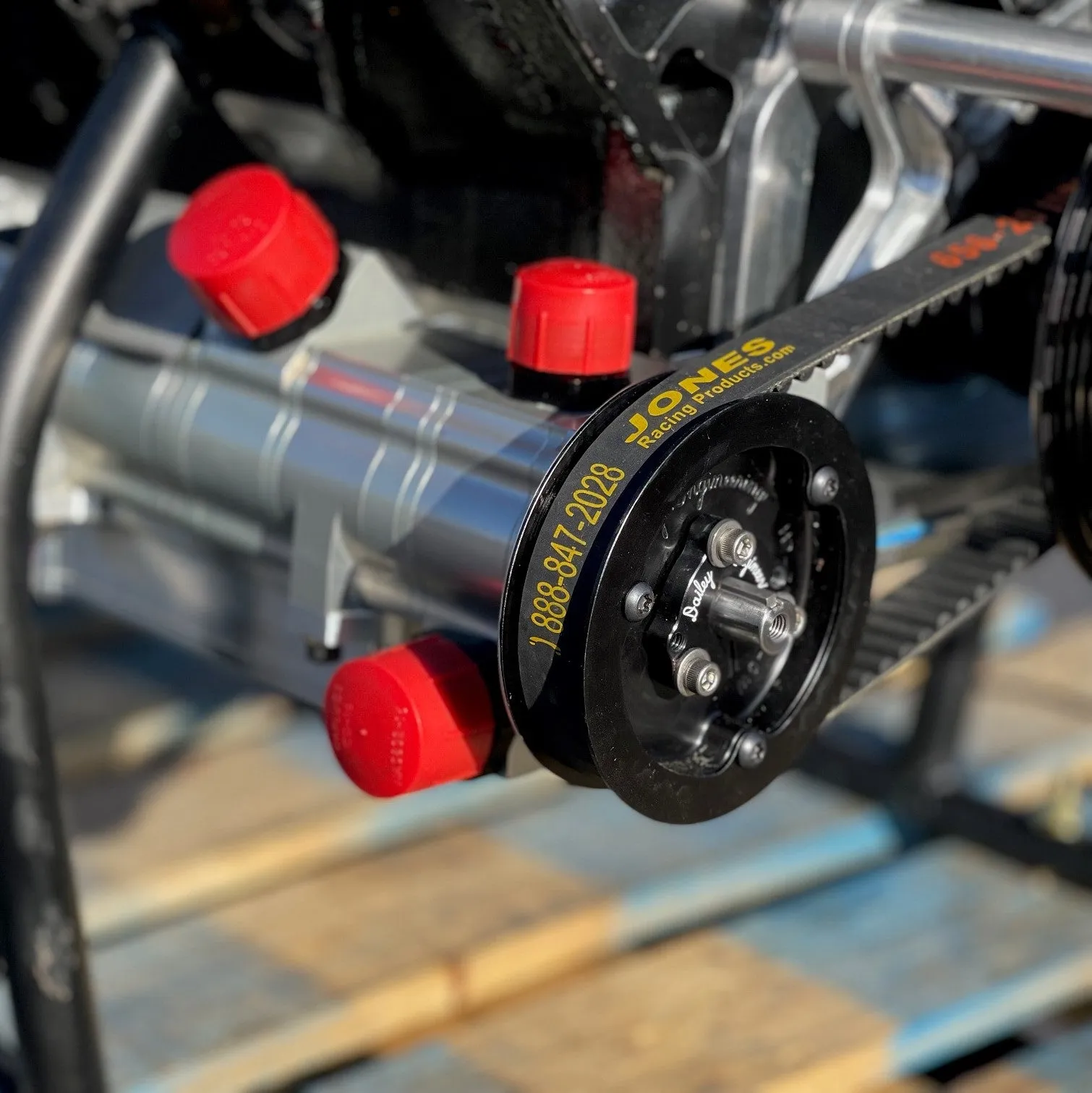

Dailey's Engineering 6-stage dry sump

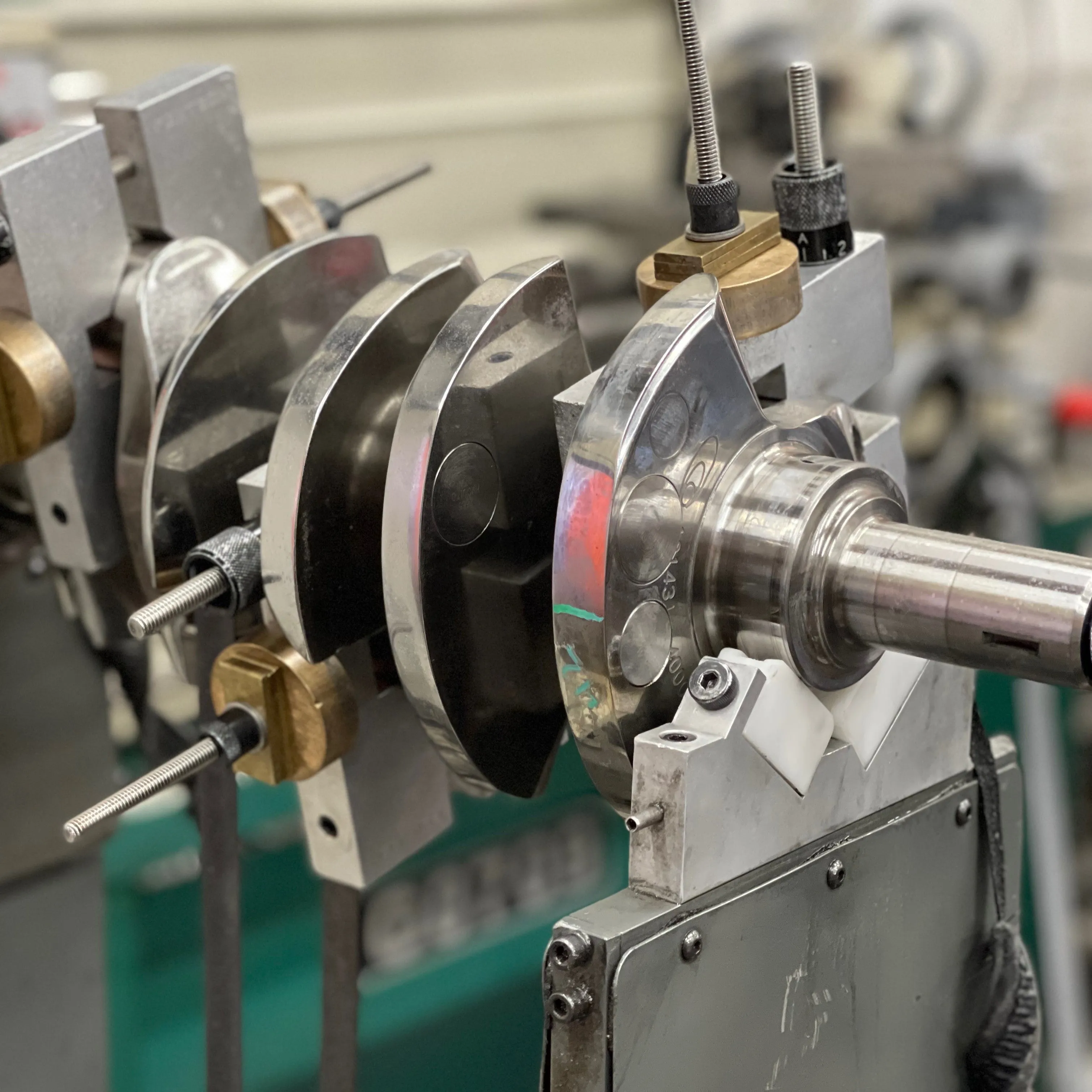

Custom Callies Magnum centercounterweighted crank with 4.00 inch stroke and I-beam Enforcer rods

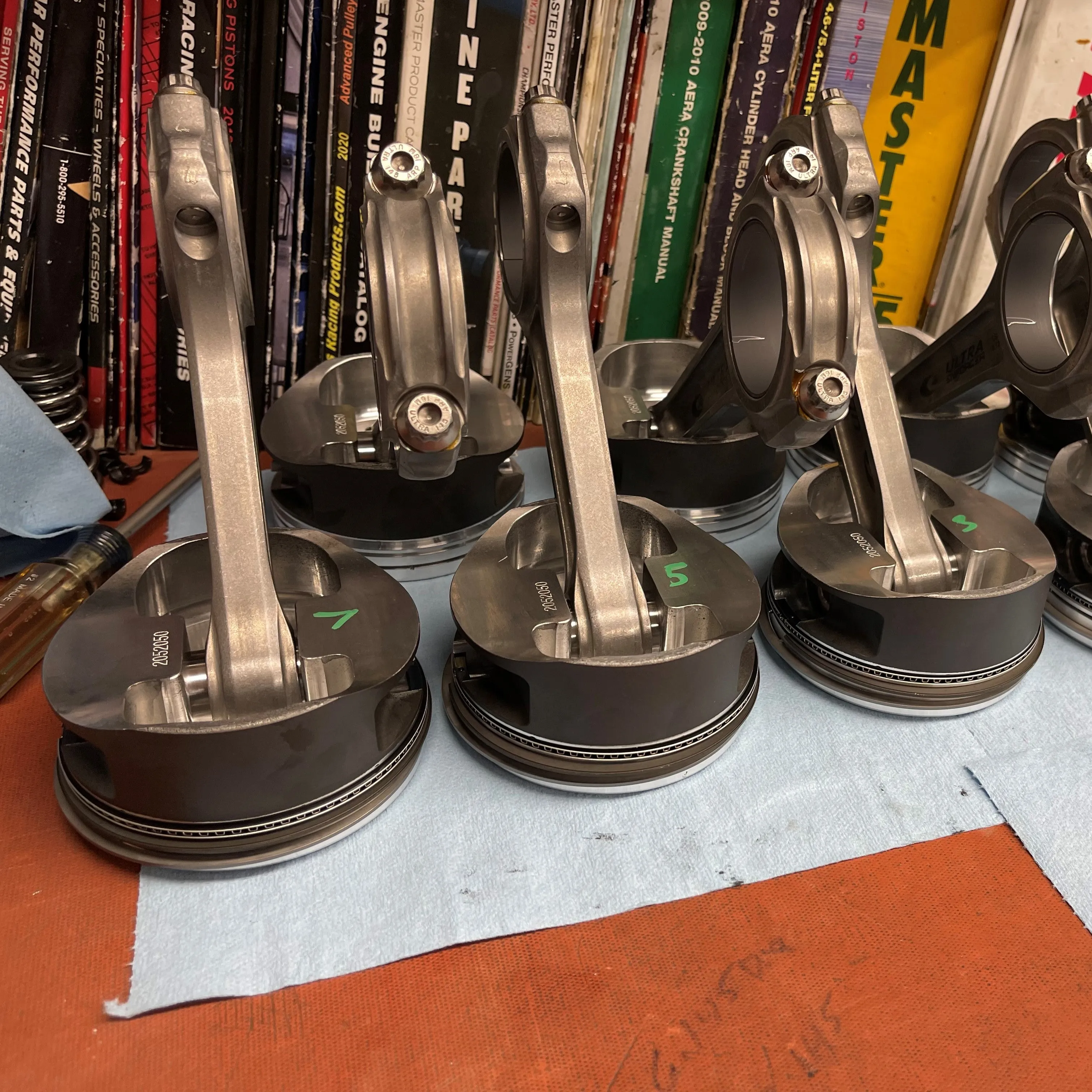

BRE custom Diamond full-round skirted pistons

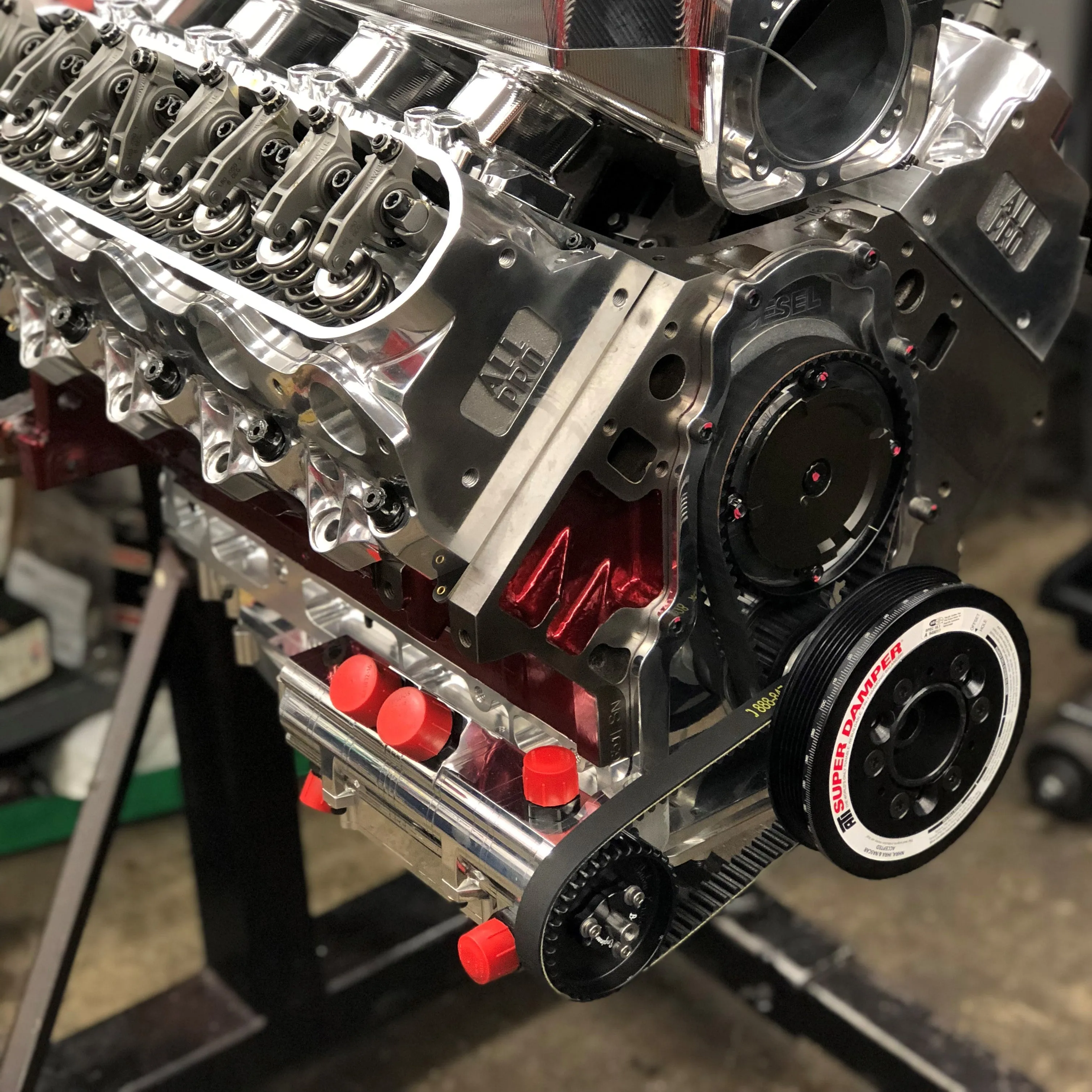

Jesel belt drive nd shaft rockers
BRE custom Comp Cams mechanical roller cam

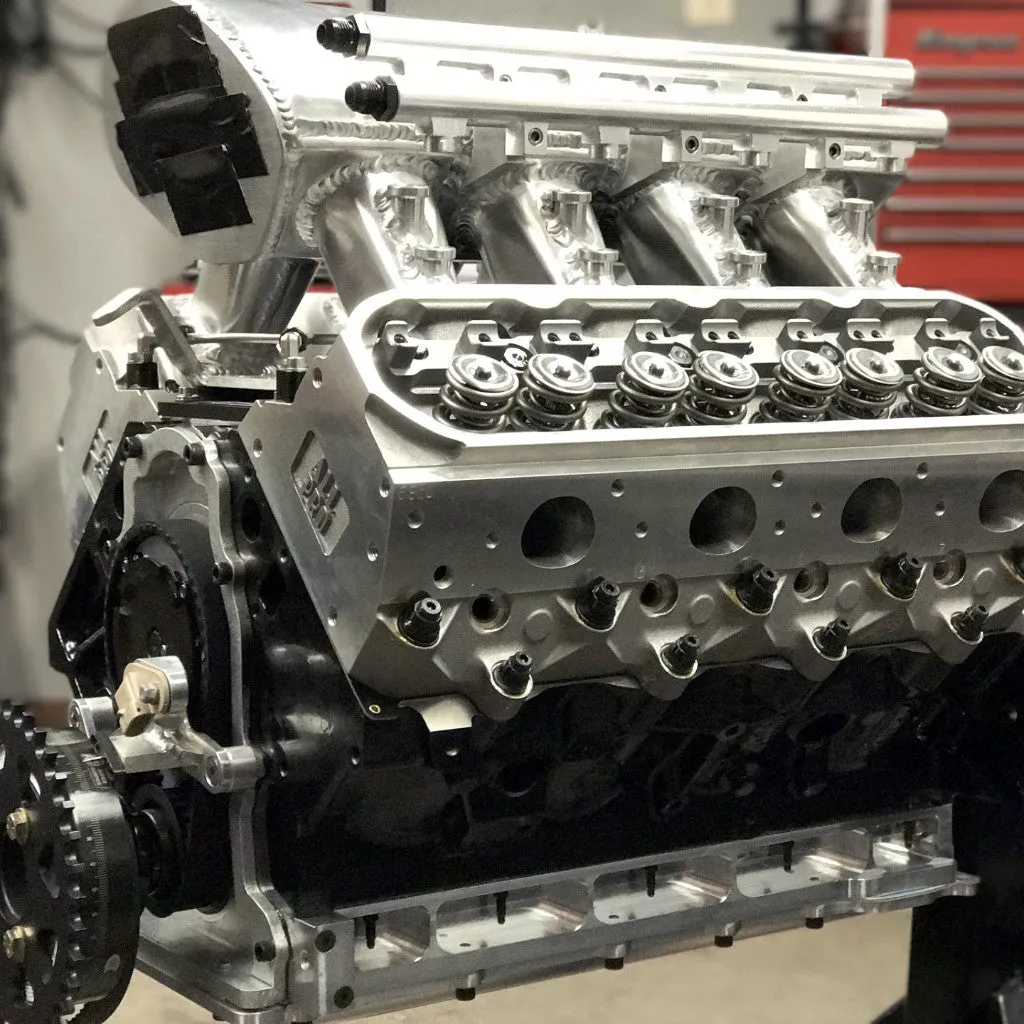

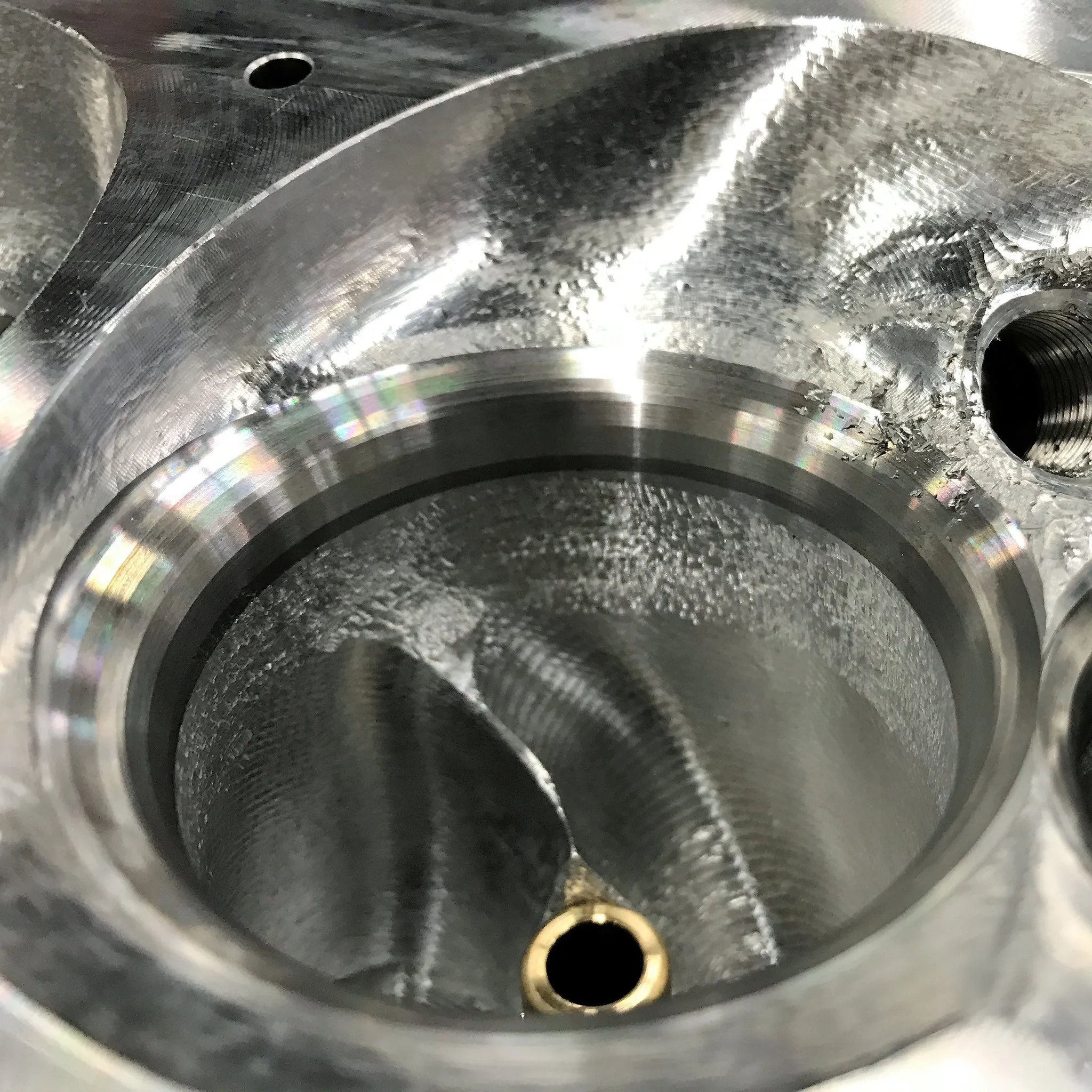

BRE custom All Pro CNC-ported heads, titanium intake and Inconel exhaust valves

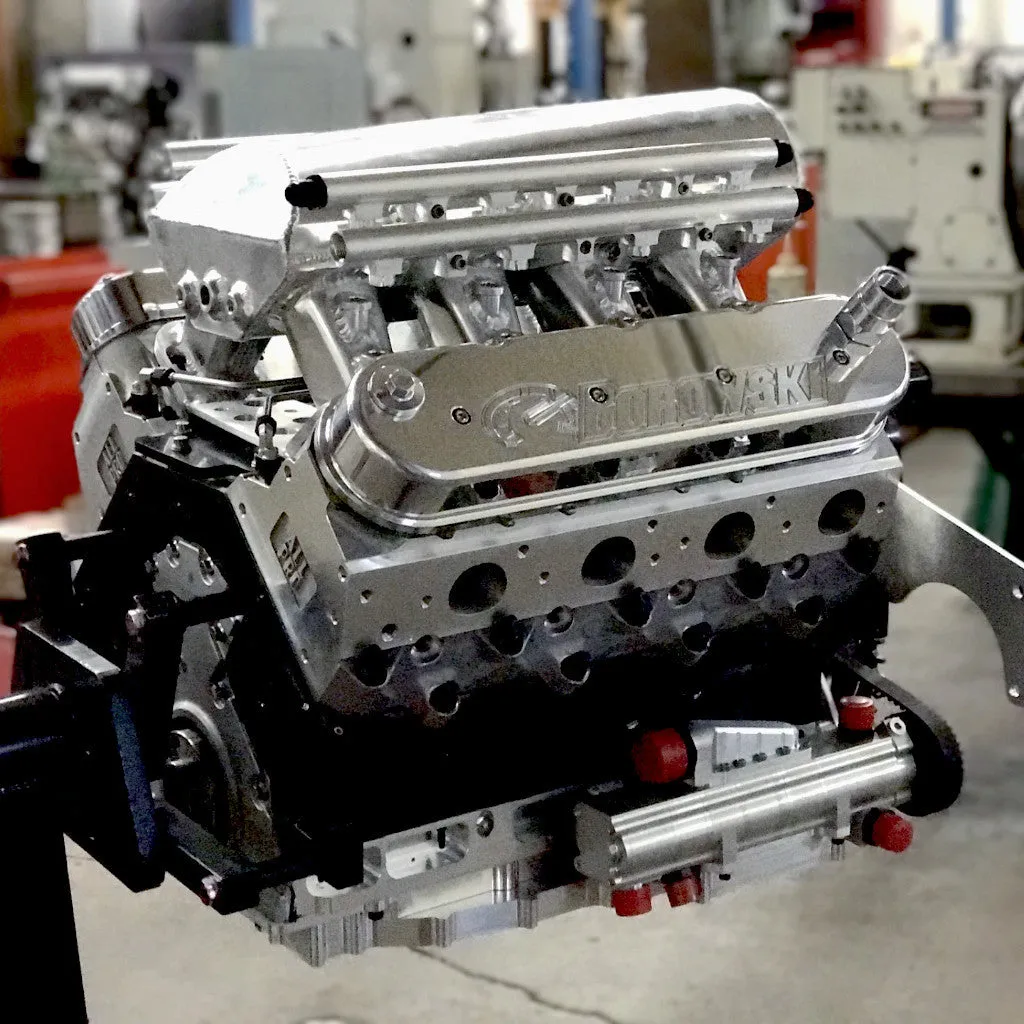

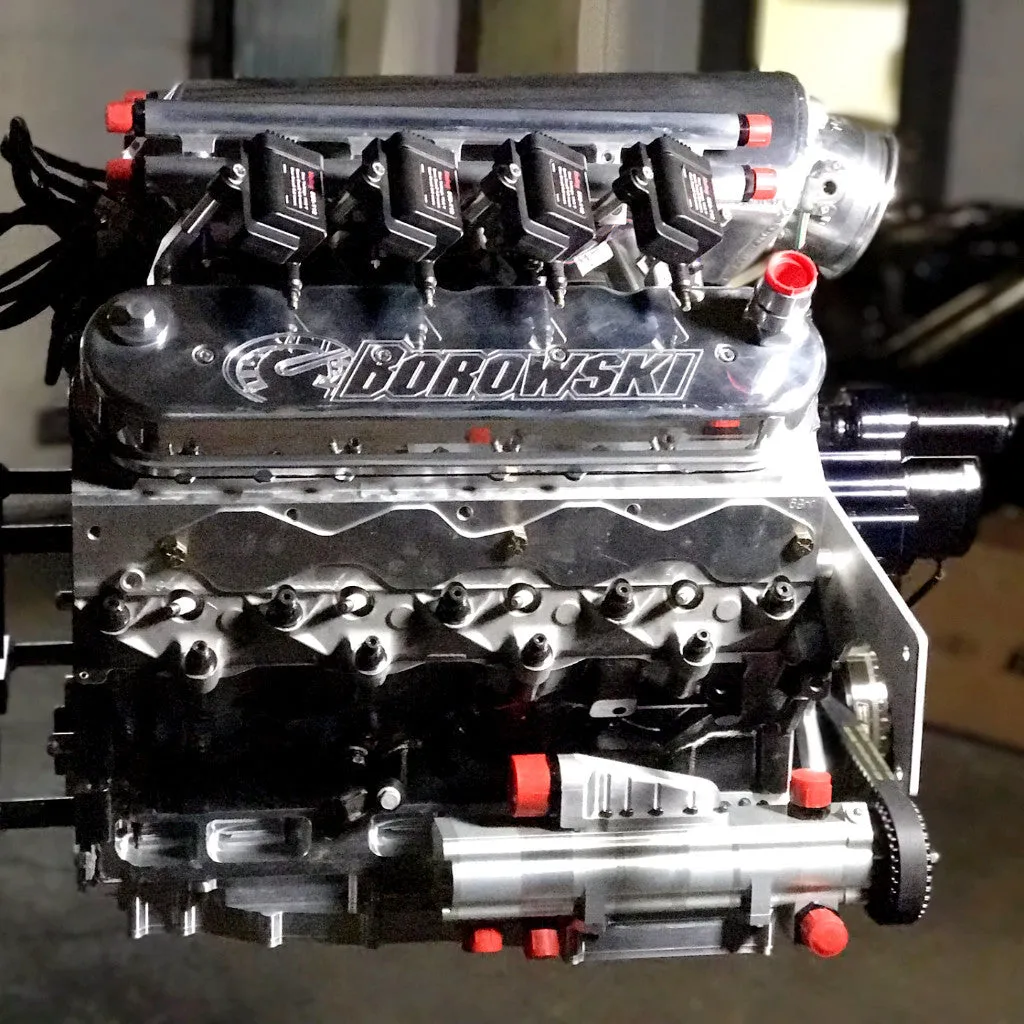

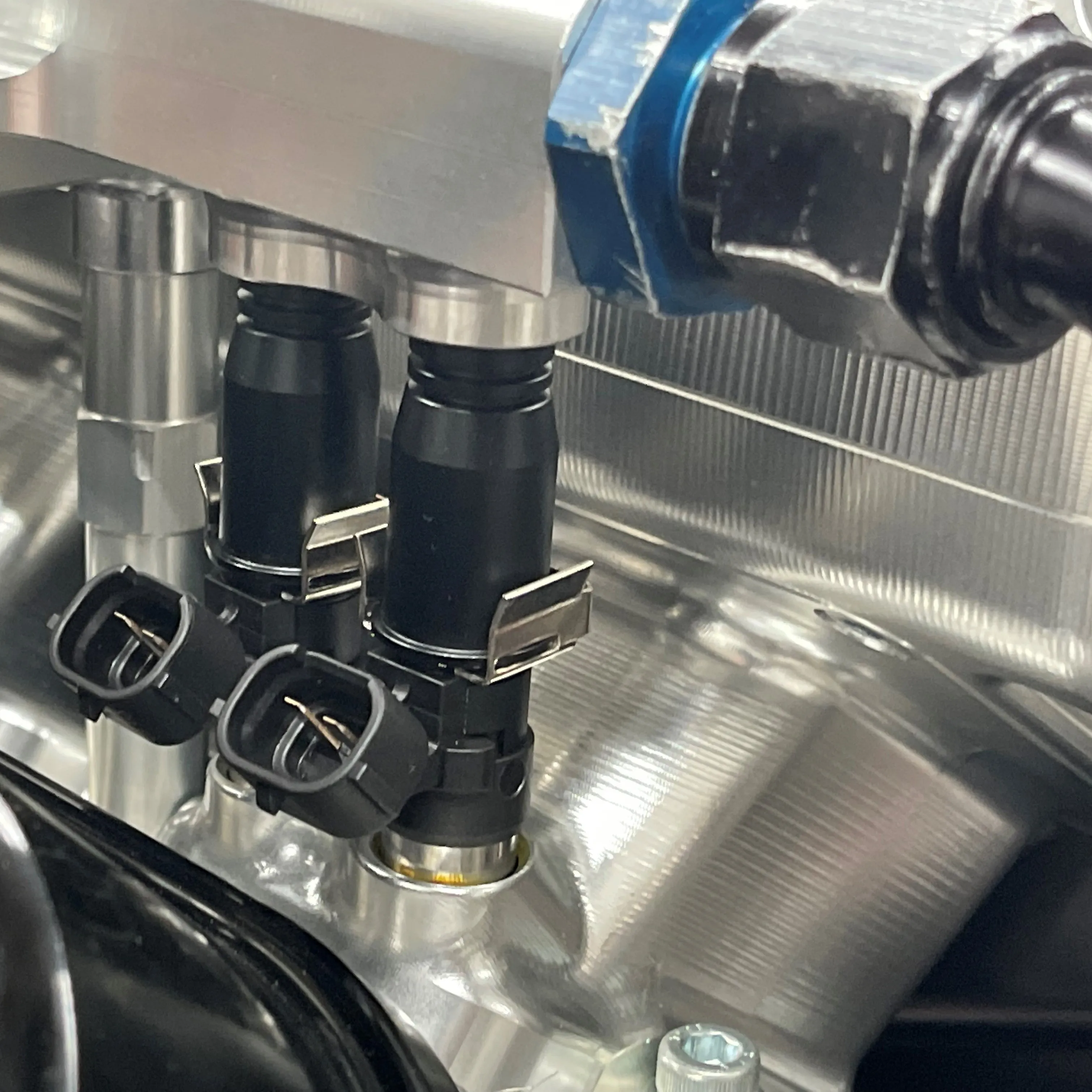

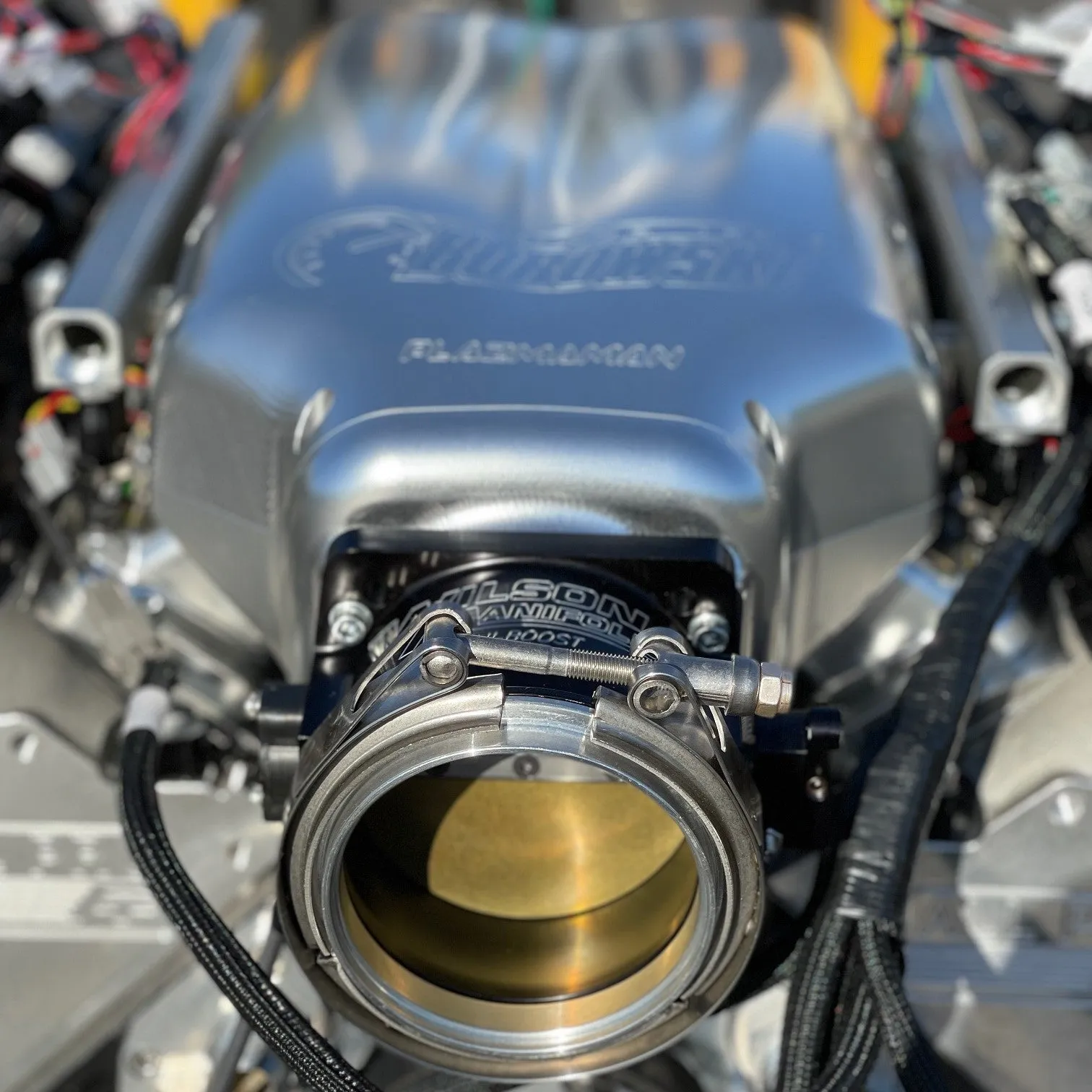

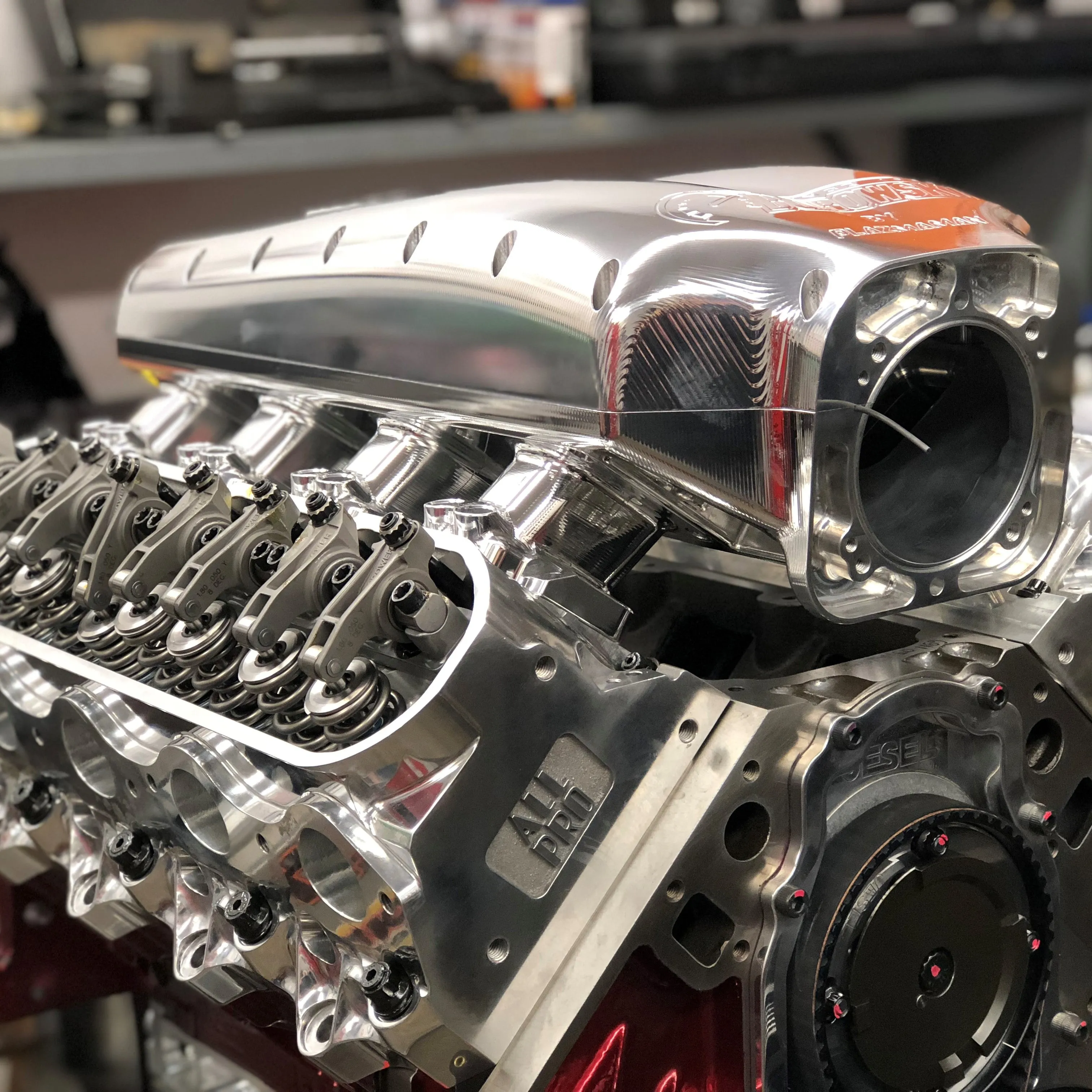

Borowski custom billet intake manifold with dual fuel rails
BRE custom Waterman fuel pump

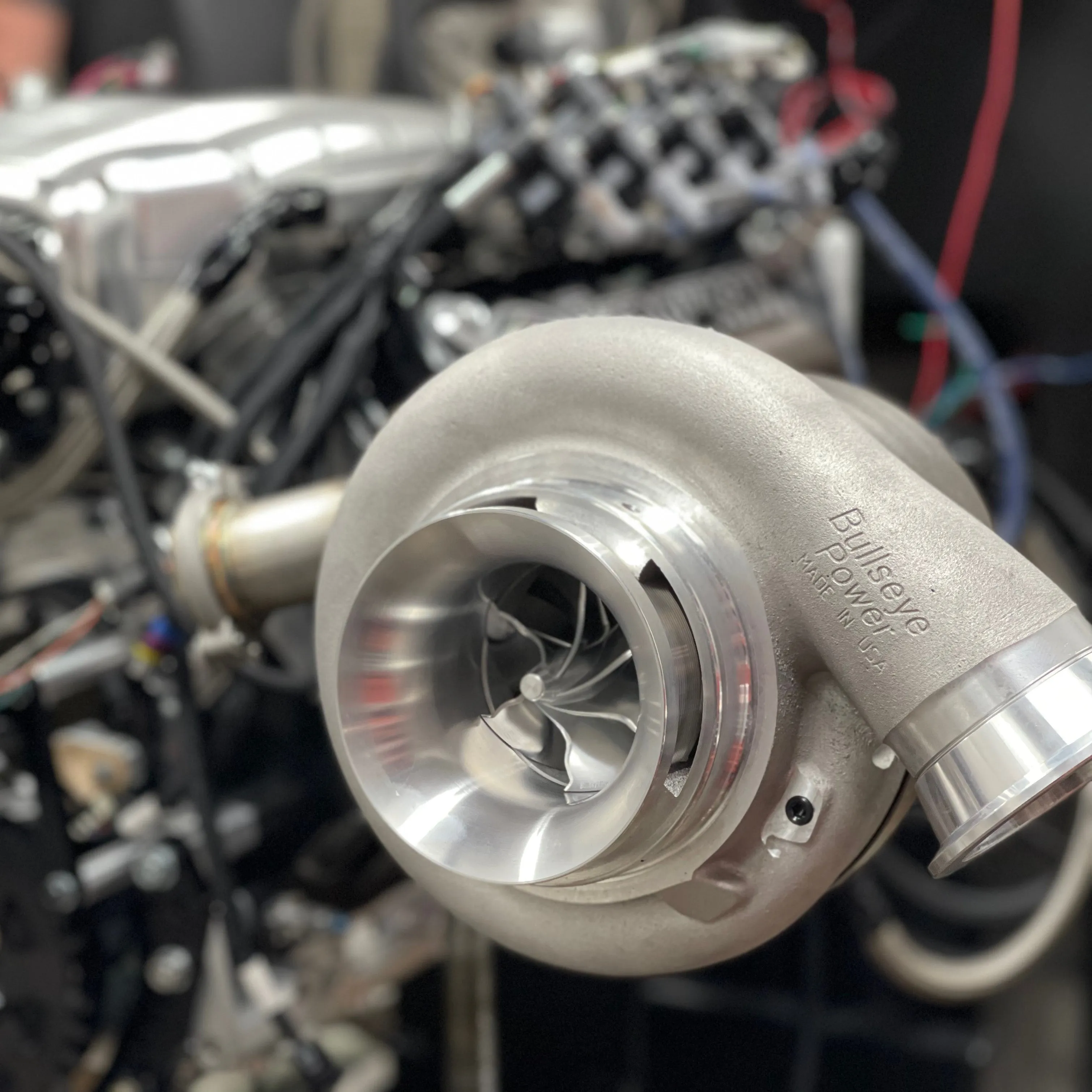

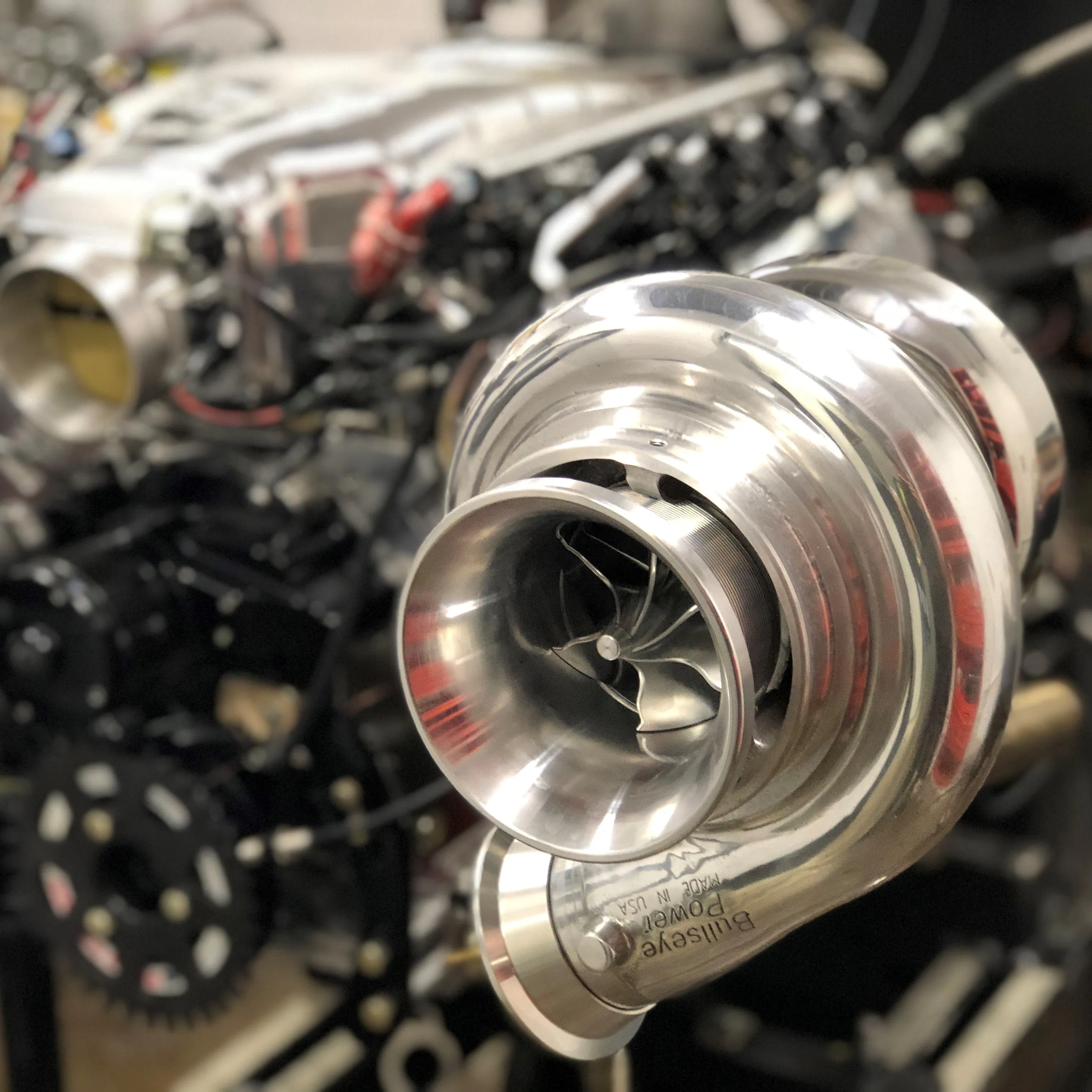

Twin Bullseye 83mm NLX turbos with Turbosmart waste gates and blow-off valves
Holley Dominator engine management system

This engine is also available with optional FuelTech and Emtron engine management systems.

Call us today at 815-725-2727 and let's talk through your specific requirements, lead time and pricing for exactly what you want.

Have some time and want to learn more? The videos below will give you additional insight into the parts and machining that will be used to build your engine.

Methods of Payment Accepted: Wire Transfer, Certified Check, Cash with IRS Form 8300

NOTES

This engine is not pollution compliant and is intended for off-road use.
All BRE engines are individually dyno tested and tuned. Customers will be supplied with video of their engine's dyno along with the dyno and build sheets.
Supply constrainst may require us to substitute parts of comparable quality. Customers will be advised if this need arises.
