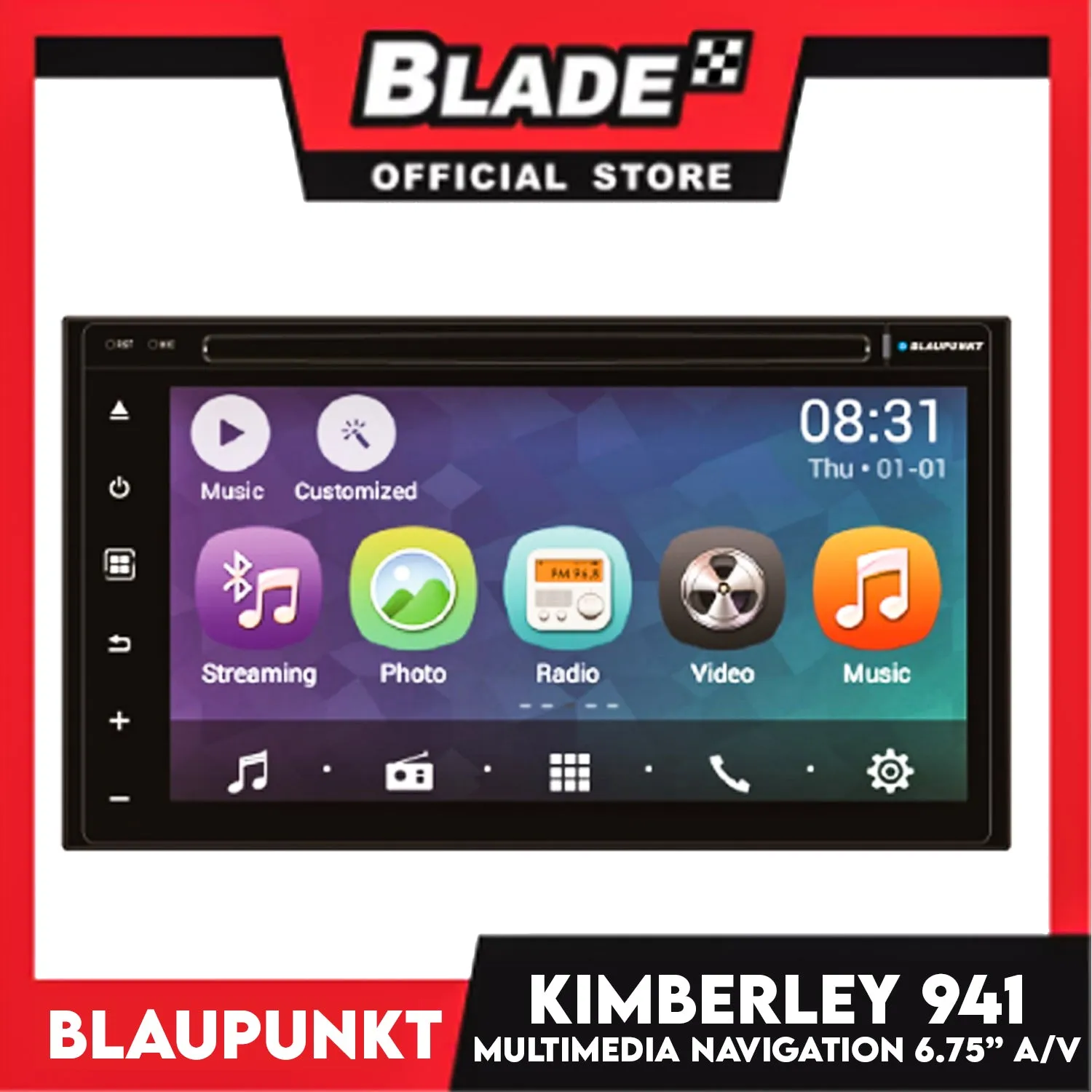

• Display
• Digital
• 6.75äó� Touch screen capacitive TFT
• Resolution : VWGA 800 x 480 pixels
• Anti-reflective
• Adjustable brightness
• Display switch off (15/30 sec)
• Clock / date displayŒæ(auto sync via GPS or RDS CT)
• Clock Mode : 24 / 12 Hours
• Home screen folder creationŒæ(up to 6 apps by folder)
• Wallpaper optionsŒæ(still, motion options, picture upload)
• Radio system languages :ŒæEnglish(US), Chinese Traditional.

ξ

• Radio
• Switchable world tuner :ŒæEurope, OIRT, Americas, Japan
• Wave bands : FM, AM (MW, LW)
• Radio data system (RDS) :ŒæAF,CT,EON,PS,PTY,TA,TP,RT
• Travelstore : FM, AM
• Band scan / preset scan
• Search via frequency
• Select via frequency scale
• 30 Station memory
• Frequency response (hz) äóñ 3dB : 30-15,000

ξ

• Navigation
• Navigation-Ready

ξ

• Data Carrier
• DVD, /-R, /-RW, -ROM
• VCD
• CD-DA, -ROM, -R/-RW
• Type disc-drive : Automatic loading
• Shock proof-drive : CD/DVD
• Frequency response (Hz) -3dB : 20-20,000
• USB 2.0 Compatible (removable storage)
• Micro SD (up to 32GB), Micro SD
• Storage formats : NTFS, FAT, FAT 16, FAT 32

ξ

• DVD Player
• Track up
• Fast Forward / fast rewind
• Position via progress bar
• Repeat chapter / title
• Play / pause / stop / resume
• Chapter skip / search
• Last position memory
• Root Menu, Setup, Title Menu
• Sub-title / audio language
• Zoom / angle
• Dolby digital 2.0

ξ

• Media Player
• Video formats : AVI, MP4, MPEG, MPG, H264
• Picture formats : JPEG, JPG
• Audio formats : MP3, WMA
• MP3 Title display :ŒæID3-tag (Version 1 and 2), file/folder names
• Album art display
• ID3-tag Criteria display :ŒæArtist, album, song, composer, year of release, file bitrate
• MP3 folder / file browsing : without track interruption
• MP3 file search : By track number
• Criteria browsing : For MP3 only
• Mix all/folder, repeat All/folder/track
• Fast forward / fast rewind : via progress bar
• CD Text
• Gapless CD-DA playback :ŒæLive, concept, classic albums
• Variable bit rates
• Number of files on MSD :ŒæUp to ~40.000 files, depending on folder files Structure
• Android phone MP3 control via PhoneLink

ξ

• Wi-Fi/Internet Access
• Internet Access viaŒæAndroid USB tethering/WIFI
• Wi-Fi Hotspot
• Pre-installed Apps
• Built-in Internet Browser
• Navigation : Waze
• Others : Spotify, twitter, facebook, accuweather, calculator, calendar, downloads, File explorer, phoneLink

ξ

• Bluetooth
• Bluetooth 2.1 With EDR
• Supported Profiles :ŒæHFP, PBAP, A2DP, AVRCP, SPP, HID, RFCOMM
• 1 x Device Pairing
• Pairing Code : 1234 (Default)
• Hands-Free Calling viaŒæMicrophone Radio Speaker
• Voice Dial (If Supported By Cell Phone)
• Key Function :ŒæAccept / Hang Up / Reject Call
• Phone Book AccessŒæ(Up to 1,000 Entries By Phone)
• History Call Lists :ŒæMissed, Dialled, Received Calls
• Auto Synchronisation : On/Off
• Auto Connect / Auto Answer : On/Off
• Favourites (Manually)
• 2nd Call Handling (Call Wait / Call Hold)
• Built-in external rear microphone.

ξ

• PhoneLink
• Smart Phone Mirroring (Via USB)
• Smart Phone Touch Control (Android only)
• Smart Phone App (PhoneLink App)
• Android Phone Requirements :ŒæVersion 4.2 or above
• Android Phones Supported(tested) :Œæmost of OS, Android 4.2 or above

ξ

• Equalizer
• 10-band Parametric Equalizer
• Analogue type
• Bass 1, Bass 2, Mid, Treble 2, Treble 1
• Variable Q-Factor By Band
• Switchable Subwoofer
• Variable Subwoofer Gain (24 Steps)
• Variable Subwoofer Phase
• Variable High-Pass Filter :Œæ63 / 100 / 120 / 150 / 180 Hz
• Variable Low-Pass Filter :Œæ55 / 85 / 120 / 160 Hz
• Sound Presets :ŒæMy EQ, flat, POP, rock, optimal, Jazz, classic, user.
• Balance / Fader ( /- 40 Steps).
• Source specific volume :ŒæDVD, Radio, A/V1, A/V2, Navigation,ŒæMedia.
• Switch-on volumeŒæ(Last volume, programmable).

ξ

• Amplifier
• 4-channel
• 4 x 50 Watt Max. Output Power
• Sinus Power at 14.4V : 4 x 30 Watt

ξ

• Rear Zone / 2nd Monitor
• Video / Audio
• Rear zone sources (Mirror of Front)

ξ

• Inputs/outputs
• Radio, GPS Antenna
• TMC (Antenna Via FM Antenna)
• 3 x Rear USB (Standard A-type)
• 1 x Front Micro SD
• Audio / Video (Analogue) : RCA
• Rear View Video Camera : RCA
• Rear View Audio / Video Camera : RCA
• Reverse Gear, Handbrake
• 1 x Rear External 3.5 mm Jack
• Steering Wheel Control
• Power Supply
• Video/Audio Out (2x, RCA Composite)
• 4-Channel Preamp Out (RCA, 2V)
• Subwoofer (1 Channel RCA, 2V)

ξ

• Accessories
• User manual
• IR remote control (Battery Included)
• GPS Antenna (5m)
• Connector cable sets
• Wifi dongle (Optional Acc).

ξ
