Duralumin Friction ring®
20115
FrD® the Nodus Factory® friction ring is an hard anodized aluminium ring with a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope.
Description
FrD® the Nodus Factory® friction ring has a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope.
This product allows an infinite number of combinations, especially where peak loads are the rule, such as backstays, cascade dumbbells, barbers and many others.
USES
- Mast foot, in-hauler
- Barber, in-haulers or as spare pulley
- Tackle (Mainsail, vang, running backstay, etc.)
- Hoists (mainsail, vang, running backstay,…etc)
Advantage
- High mechanical resistance
- High impact and UV resistance
- Low coefficient of friction
- Reliable and maintenance-free

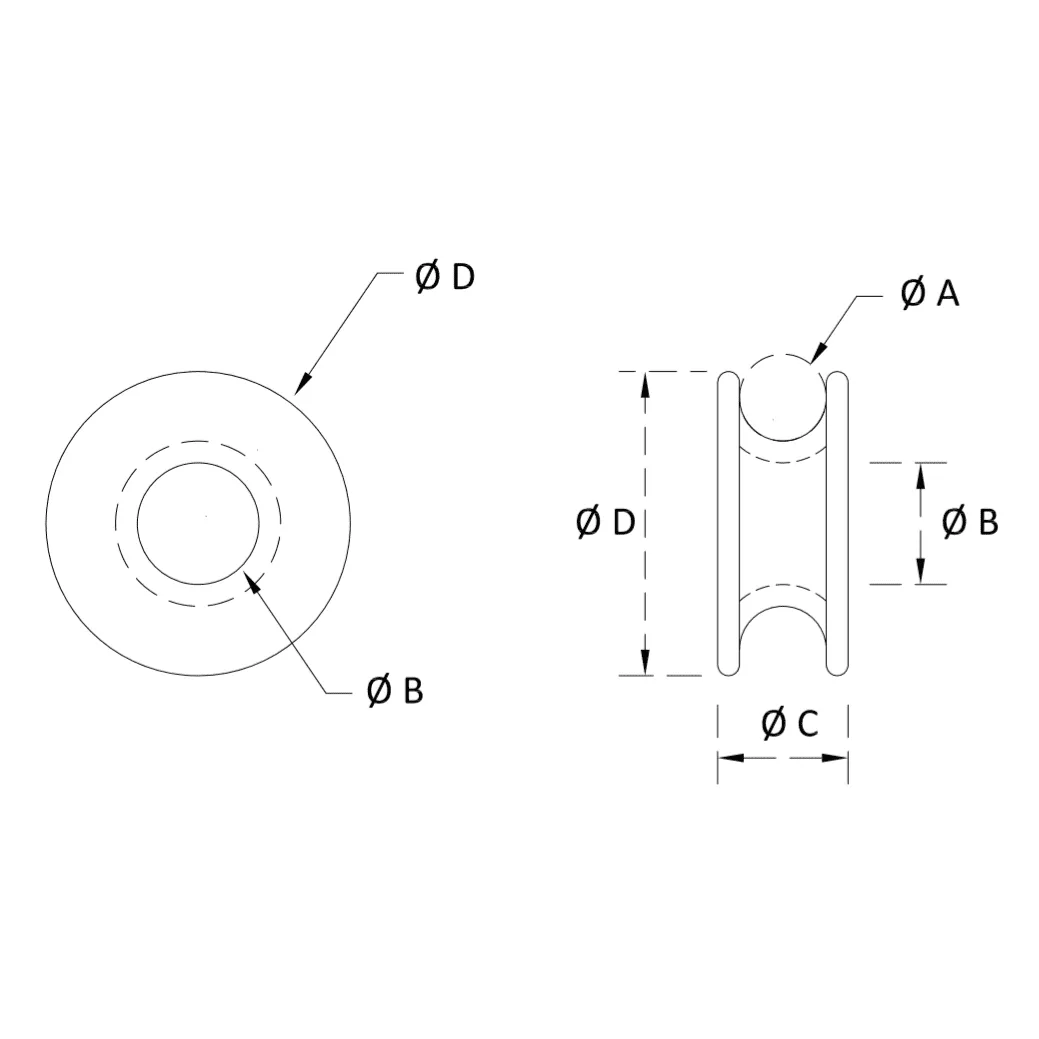

Product Name | Breaking Load | Ø A | Ø B | Ø C | Ø D | Ø Rope Recommended | Weight |
| Angle | 0° | Halyard and sheet | |||||
| Duralumin | KG | mm | mm | mm | mm | mm | gr |
| FrD 10 | 1500 | 7 | 12 | 12 | 30 | 8 max. | 8 |
