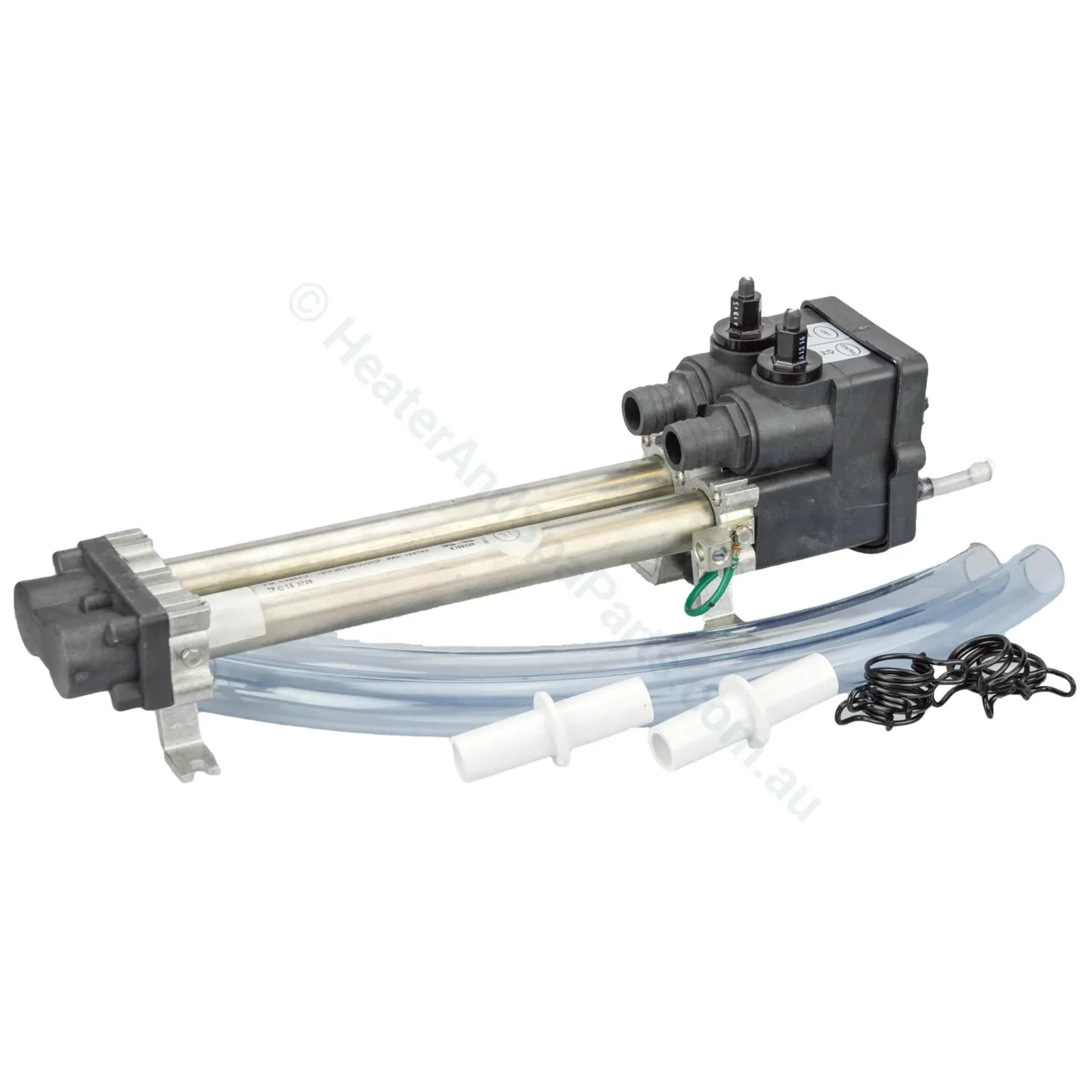

Hot Spring Spas 1500w Heater - replaces 1989 - 1994 heaters with capillary thermostats replacement kit.

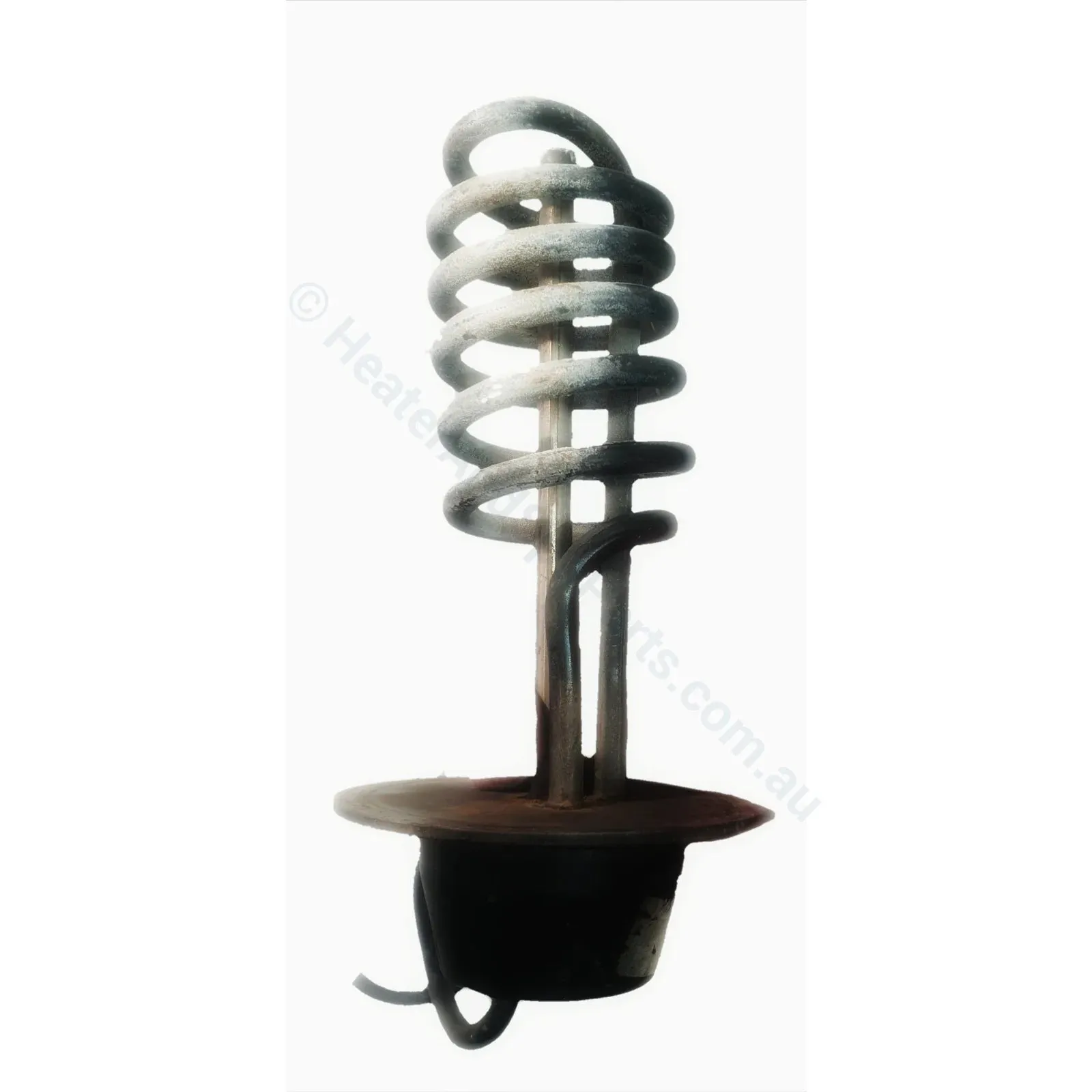

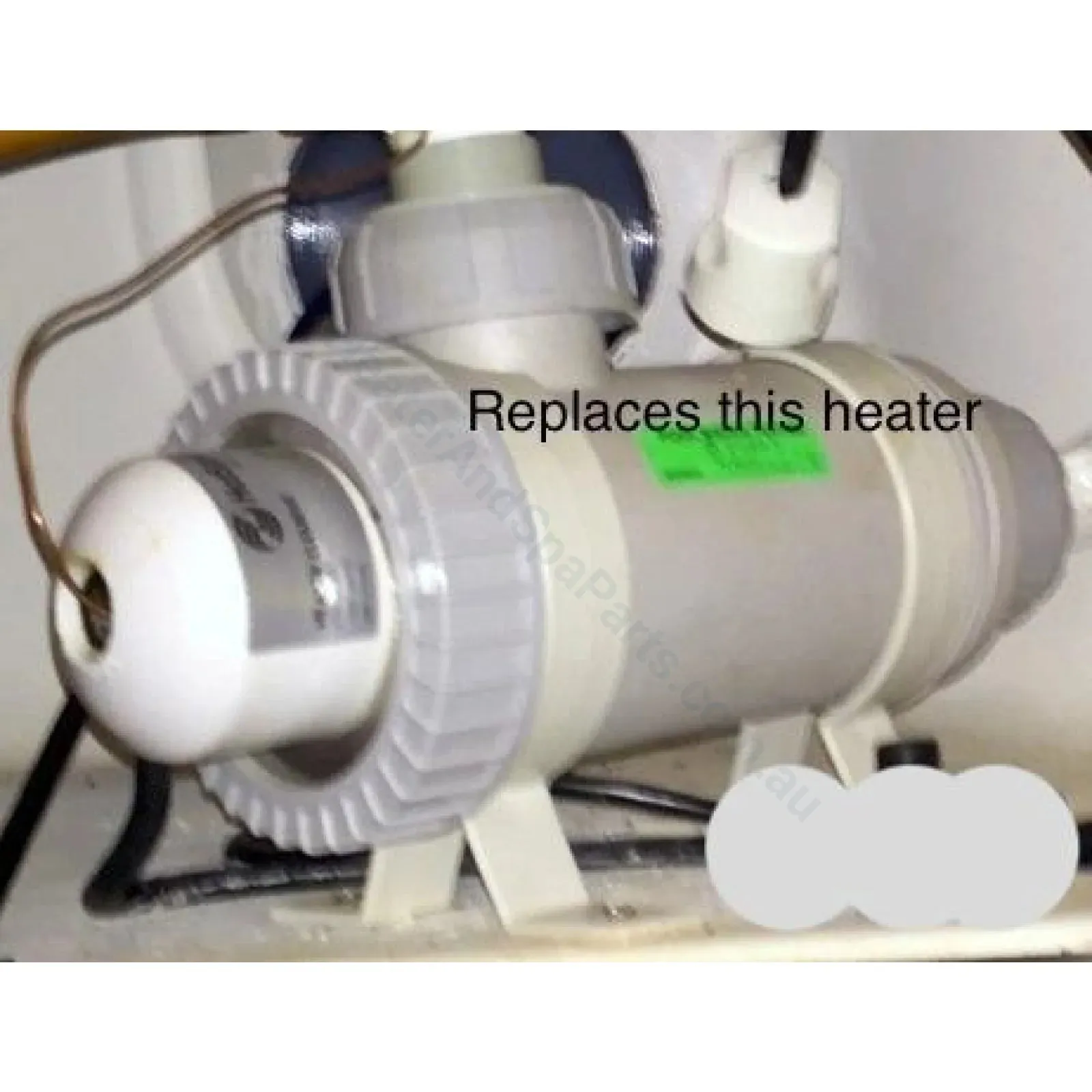

Replaces ALL older large grey plastic body heaters with coiled elements on pre-1994 models. (not models with electronic temp sensors threaded into the heater).

Information:

• 3/4" barbs for tubing connection

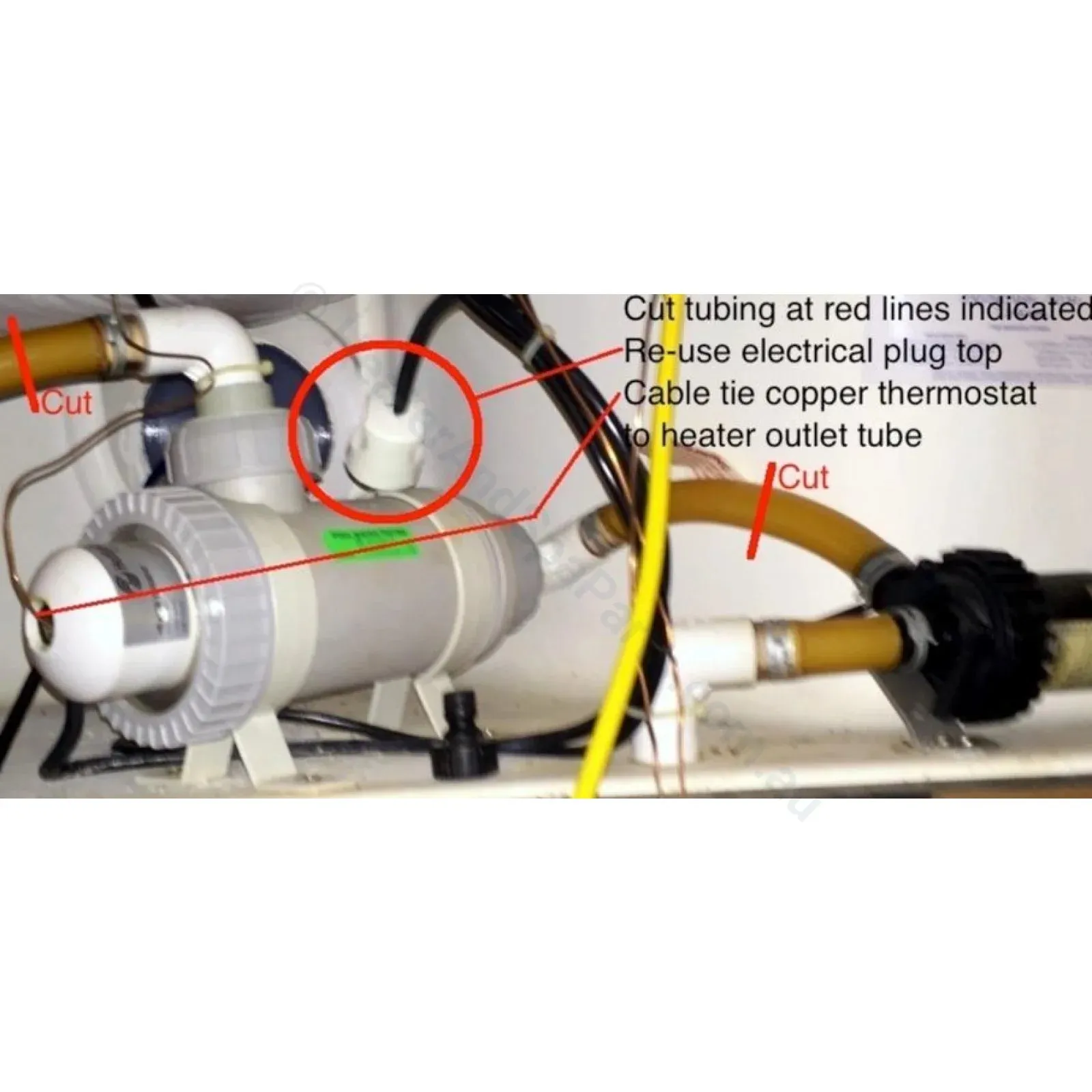

• Re-use existing plug / connection
• High limit bulb in the original heater must be cable tied to the outlet side tube on the new heater.

Includes:

• 2 x Cap-Off Plugs with o-rings to close the electronic sensor holes (fitted in place as per image)

• 3/4" clear tubing x 2

• 6 x 3/4" spring loaded pressure clamps (wire type)

• Barbed coupling fittings X 2

*As Hot Spring spas generally have no flow/pressure switch protection, its extremely important that you ensure water has flooded the heater and is flowing through the plumbing (primed) after installation and after every drain/refill. Failure of the heater due to 'Dry Running' will likely result if the heater has not properly primed. This is not a manufacturing defect and therefore not a warranty covered failure.
